java.lang.Object
|
+--org.xml.sax.helpers.DefaultHandler
|
+--com.devsphere.xml.saxdomix.SDXBuilder
This class provides the mixed SAX 2.0 - DOM Level 2 parsing functionality. It needs JAXP 1.1 support. TrAX support isn't necessary.
Each builder object needs from the application a SAX content
handler (org.xml.sax.ContentHandler) and a controller
(com.devsphere.xml.saxdomix.SDXController). Any builder
also has an internal wantDOM flag.
The application receives the SAX events via the content handler
as long as the wantDOM flag is false.
During the SAX parsing, the builder object invokes the controller's
wantDOM() method for each startElement()
parsing event. If wantDOM() returns false
the SAX parsing mode continues. When wantDOM() returns
true the value of the internal wantDOM flag
is switched to true and the builder starts creating a DOM
sub-tree from the SAX events, which aren't forwarded to the application
anymore.
The building of the sub-tree ends after the endElement()
event that corresponds to the startElement() event whose
associated wantDOM() call returned true.
The DOM sub-tree, whose root is an org.w3c.dom.Element
object is passed to the controller's handleDOM() method.
After this, the wantDOM flag is switched automatically to
false re-enabling the SAX parsing. The application will
receive SAX events until the controller's wantDOM() returns
true for another element or the end of the parsed document
is reached.
A DOM sub-tree is made of five types of DOM objects:
org.w3c.dom.Element
org.w3c.dom.Text
org.w3c.dom.CDATASection
org.w3c.dom.Comment
org.w3c.dom.ProcessingInstructionThese DOM objects are created with a helper object. In most cases
you'll let the framework to use its own DefaultSDXHelper,
but you may provide your own implementation of the SDXHelper
interface, which is declared in the
com.devsphere.xml.saxdomix.helpers package.
The entity references are expanded.
If the class of the content handler object implements
org.xml.sax.ext.LexicalHandler, the application will also
receive comment(), startCDATA() and
endCDATA() SAX lexical events during the SAX parsing mode.

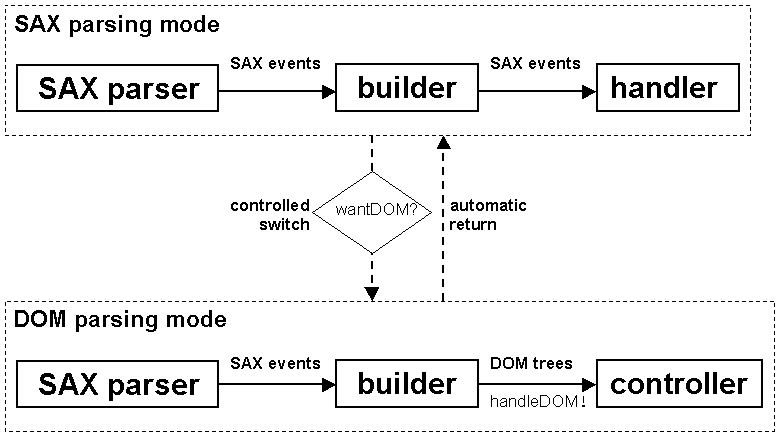

In conclusion, the builder is initially in SAX parsing mode, which means
that SAX events are forwarded to a content handler provided by the
application. During the SAX parsing, the wantDOM() method of
a controller object is called for each element start.
When wantDOM() returns true, the builder retains
the SAX events and uses them to build a DOM sub-tree, which is then passed
for handling to the handleDOM() method of the controller object.
During the DOM building, the wantDOM() method is NOT called.
The builder switches to the SAX parsing mode automatically when the DOM
sub-tree is completed. This process is repeated until the end of the parsed
document, which means that multiple DOM sub-trees can be constructed during
the parsing of a single XML document. All SAX events that aren't used to
build the sub-trees are passed to the application's content handler.
SDXBuilder extends the DefaultHandler SAX helper
class but overrides only the methods of the ContentHandler
SAX interface. It also implements the LexicalHandler
SAX extension. A SAX parser is needed in order to feed the builder
with SAX events. Some of these events will be forwarded to the application's
content handler and the others will be used to build the DOM sub-trees
as described above.
There are two ways to use SDXBuilder: you may pass it to
the parse() method of a JAXP SAXParser or you may
register it as content handler to a SAX XMLReader and then call
its parse() method. In the second case you could create
a JAXP SAXParser and then obtain the SAX XMLReader
using the getXMLReader() method of the SAXParser
object.
Usage 1:
org.xml.sax.ContentHandler handler = ...
SDXController controller = ...
org.xml.sax.helpers.DefaultHandler builder
= new SDXBuilder(handler, controller);
javax.xml.parsers.SAXParser saxParser = ...
saxParser.getXMLReader().setProperty(
"http://xml.org/sax/properties/lexical-handler", builder);
java.io.InputStream in = ...
saxParser.parse(in, builder);
If the default error handling or entity resolving mechanisms
don't suit the needs of your application or you need information about
unparsed entities and notations, then you should subclass
SDXBuilder and override the methods defined
by the ErrorHandler, EntityResolver
and DTDHandler SAX interfaces.
Usage 2:
org.xml.sax.ContentHandler handler = ...
SDXController controller = ...
org.xml.sax.ContentHandler builder
= new SDXBuilder(handler, controller);
org.xml.sax.XMLReader xmlReader = ...
xmlReader.setContentHandler(builder);
xmlReader.setProperty(
"http://xml.org/sax/properties/lexical-handler", builder);
xmlReader.setErrorHandler(...);
org.xml.sax.InputSource in = ...
xmlReader.parse(in);
In this case, you should always register an error handler. (If you don't
have one then register a DefaultHandler as error handler.)
If the default entity resolving mechanism doesn't suit the needs of your application and you need information about unparsed entities and notations, then register an entity resolver and a DTD handler to the XML reader.
SDXController,
SDXHelper,
DefaultSDXHelper| Field Summary | |
protected SDXController |
controller
The controller provided by the application |
protected org.xml.sax.ContentHandler |
handler
The SAX content handler provided by the application |
protected SDXHelper |
helper
The helper object used as factory for DOM nodes |
protected boolean |
inCDATA
A flag indicating that we are inside a CDATA section |
protected org.xml.sax.ext.LexicalHandler |
lexicalHandler
A cast to the content handler or null if its class doesn't implement LexicalHandler |
protected boolean |
newCDATA
A flag indicating that we just entered inside a CDATA section |
protected ElementStack |
stack
A stack of DOM Element nodes |
protected boolean |
wantDOM
The flag that indicates the current parsing mode (false means SAX; true means DOM) |
| Constructor Summary | |
SDXBuilder(org.xml.sax.ContentHandler handler,
SDXController controller)
Creates a builder that forwards the SAX events to the given handler, switches to DOM when the wantDOM() method of the given
controller returns true and also passes the DOM sub-trees to the
controller's handleDOM() method. |
|
SDXBuilder(org.xml.sax.ContentHandler handler,
SDXController controller,
SDXHelper helper)
Creates a builder that forwards the SAX events to the given handler, switches to DOM when the wantDOM() method of the given
controller returns true and also passes the DOM sub-trees to the
controller's handleDOM() method. |
|
| Method Summary | |
void |
characters(char[] ch,
int start,
int length)
Calls the method with the same name of the handler object or creates a DOM character data node depending on the value of the wantDOM flag. |
void |
comment(char[] ch,
int start,
int length)
Calls the method with the same name of the handler object or creates a DOM Comment node depending on the value
of the wantDOM flag. |
void |
endCDATA()
Calls the method with the same name of the handler object if the value of the wantDOM flag if false. |
void |
endDocument()
Calls the method with the same name of the handler object. |
void |
endDTD()
Does nothing. |
void |
endElement(java.lang.String namespaceURI,
java.lang.String localName,
java.lang.String qualifiedName)
Calls the method with the same name of the handler object or passes the DOM sub-trees to the controller's handleDOM()
method depending on the value of the wantDOM flag. |
void |
endEntity(java.lang.String name)
Does nothing. |
void |
processingInstruction(java.lang.String target,
java.lang.String data)
Calls the method with the same name of the handler object or creates a DOM ProcessingInstruction node depending on
the value of the wantDOM flag. |
void |
setDocumentLocator(org.xml.sax.Locator locator)
Calls the method with the same name of the handler object passing the given locator as parameter. |
void |
startCDATA()
Calls the method with the same name of the handler object if the value of the wantDOM flag if false. |
void |
startDocument()
Calls the method with the same name of the handler object and initializes some of the fields of this object. |
void |
startDTD(java.lang.String name,
java.lang.String publicId,
java.lang.String systemId)
Does nothing. |
void |
startElement(java.lang.String namespaceURI,
java.lang.String localName,
java.lang.String qualifiedName,
org.xml.sax.Attributes attributes)
Calls the method with the same name of the handler object or creates a DOM Element node depending on the value
of the wantDOM flag. |
void |
startEntity(java.lang.String name)
Does nothing. |
| Methods inherited from class org.xml.sax.helpers.DefaultHandler |
endPrefixMapping, error, fatalError, ignorableWhitespace, notationDecl, resolveEntity, skippedEntity, startPrefixMapping, unparsedEntityDecl, warning |
| Methods inherited from class java.lang.Object |
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait |
| Field Detail |
protected org.xml.sax.ContentHandler handler
protected SDXController controller
protected org.xml.sax.ext.LexicalHandler lexicalHandler
LexicalHandler
protected SDXHelper helper
protected boolean wantDOM
SAX; true means DOM)
protected ElementStack stack
Element nodes
protected boolean newCDATA
protected boolean inCDATA
| Constructor Detail |
public SDXBuilder(org.xml.sax.ContentHandler handler,
SDXController controller)
wantDOM() method of the given
controller returns true and also passes the DOM sub-trees to the
controller's handleDOM() method. The created builder
will use a DefaultSDXHelper to create the DOM nodes.
handler - The application's SAX ContentHandlercontroller - The application's SDXController
java.lang.NullPointerException - If one of the parameters is null
public SDXBuilder(org.xml.sax.ContentHandler handler,
SDXController controller,
SDXHelper helper)
wantDOM() method of the given
controller returns true and also passes the DOM sub-trees to the
controller's handleDOM() method. The created builder
will use the given helper to create the DOM nodes.
handler - The application's SAX ContentHandlercontroller - The application's SDXControllerhelper - The application's optional SDXHelper
java.lang.NullPointerException - If one of the parameters is null| Method Detail |
public void setDocumentLocator(org.xml.sax.Locator locator)
setDocumentLocator in interface org.xml.sax.ContentHandlersetDocumentLocator in class org.xml.sax.helpers.DefaultHandlerlocator - The SAX Locator object
public void startDocument()
throws org.xml.sax.SAXException
startDocument in interface org.xml.sax.ContentHandlerstartDocument in class org.xml.sax.helpers.DefaultHandlerorg.xml.sax.SAXException - Error reported by the handler's method
public void endDocument()
throws org.xml.sax.SAXException
endDocument in interface org.xml.sax.ContentHandlerendDocument in class org.xml.sax.helpers.DefaultHandlerorg.xml.sax.SAXException - Error reported by the handler's method
public void startElement(java.lang.String namespaceURI,
java.lang.String localName,
java.lang.String qualifiedName,
org.xml.sax.Attributes attributes)
throws org.xml.sax.SAXException
Element node depending on the value
of the wantDOM flag.
startElement in interface org.xml.sax.ContentHandlerstartElement in class org.xml.sax.helpers.DefaultHandlernamespaceURI - The element's namespace URIlocalName - The element's local namequalifiedName - The element's qualified nameattributes - The element's attributes
org.xml.sax.SAXException - Error reported by the handler's method
public void endElement(java.lang.String namespaceURI,
java.lang.String localName,
java.lang.String qualifiedName)
throws org.xml.sax.SAXException
handleDOM()
method depending on the value of the wantDOM flag.
endElement in interface org.xml.sax.ContentHandlerendElement in class org.xml.sax.helpers.DefaultHandlernamespaceURI - The element's namespace URIlocalName - The element's local namequalifiedName - The element's qualified name
org.xml.sax.SAXException - Error reported by the handler's method
public void characters(char[] ch,
int start,
int length)
throws org.xml.sax.SAXException
wantDOM flag.
characters in interface org.xml.sax.ContentHandlercharacters in class org.xml.sax.helpers.DefaultHandlerch - The characters from the XML documentstart - The start position in the arraylength - The number of characters to get from the array
org.xml.sax.SAXException - Error reported by the handler's method
public void processingInstruction(java.lang.String target,
java.lang.String data)
throws org.xml.sax.SAXException
ProcessingInstruction node depending on
the value of the wantDOM flag.
processingInstruction in interface org.xml.sax.ContentHandlerprocessingInstruction in class org.xml.sax.helpers.DefaultHandlertarget - The target of the processing instruction.data - The data of the processing instruction.
org.xml.sax.SAXException - Error reported by the handler's method
public void startDTD(java.lang.String name,
java.lang.String publicId,
java.lang.String systemId)
throws org.xml.sax.SAXException
startDTD in interface org.xml.sax.ext.LexicalHandlername - The name of the document's root element.publicId - The public identifier of the external DTDsystemId - The system identifier of the external DTD
org.xml.sax.SAXException - Cannot be thrown since the method does nothing
public void endDTD()
throws org.xml.sax.SAXException
endDTD in interface org.xml.sax.ext.LexicalHandlerorg.xml.sax.SAXException - Cannot be thrown since the method does nothing
public void startEntity(java.lang.String name)
throws org.xml.sax.SAXException
startEntity in interface org.xml.sax.ext.LexicalHandlername - The name of an entity
org.xml.sax.SAXException - Cannot be thrown since the method does nothing
public void endEntity(java.lang.String name)
throws org.xml.sax.SAXException
endEntity in interface org.xml.sax.ext.LexicalHandlername - The name of an entity
org.xml.sax.SAXException - Cannot be thrown since the method does nothing
public void startCDATA()
throws org.xml.sax.SAXException
wantDOM flag if false.
The inCDATA and newCDATA flags are set to
true.
startCDATA in interface org.xml.sax.ext.LexicalHandlerorg.xml.sax.SAXException - Error reported by the handler's method
public void endCDATA()
throws org.xml.sax.SAXException
wantDOM flag if false.
The inCDATA flag is set to false.
endCDATA in interface org.xml.sax.ext.LexicalHandlerorg.xml.sax.SAXException - Error reported by the handler's method
public void comment(char[] ch,
int start,
int length)
throws org.xml.sax.SAXException
Comment node depending on the value
of the wantDOM flag.
comment in interface org.xml.sax.ext.LexicalHandlerch - An array holding the characters in the commentstart - The start position in the arraylength - The number of characters to get from the array
org.xml.sax.SAXException - Error reported by the handler's method
|
Devsphere.com |
|||||||||
| PREV CLASS NEXT CLASS | FRAMES NO FRAMES | |||||||||
| SUMMARY: NESTED | FIELD | CONSTR | METHOD | DETAIL: FIELD | CONSTR | METHOD | |||||||||
