com.devsphere.xml.saxdomix
Class SDXTransformer

java.lang.Object
  |
  +--javax.xml.transform.Transformer
        |
        +--com.devsphere.xml.saxdomix.SDXTransformer

All Implemented Interfaces:

SDXController

Direct Known Subclasses:

MixedTransformer, SmartTransformer

public abstract class SDXTransformer

extends javax.xml.transform.Transformer

implements SDXController

This class applies an XSLT transformation to each DOM sub-tree created during the mixed SAX-DOM parsing of an XML document.

SDXTransformer extends Transformer, which is a TrAX abstract class introduced by JAXP 1.1. SDXTransformer also implements the handleDOM() method of the SDXController interface. The application must define subclasses of SDXTransformer and implement the wantDOM() method of SDXController.

All configuration methods defined by Transformer, such as setOutputProperty() or setParameter() delegate their task to another Transformer object called fragmentTransformer. This object can be provided by the application or can be constructed internally from any XSLT suitable to transform the DOM sub-trees.

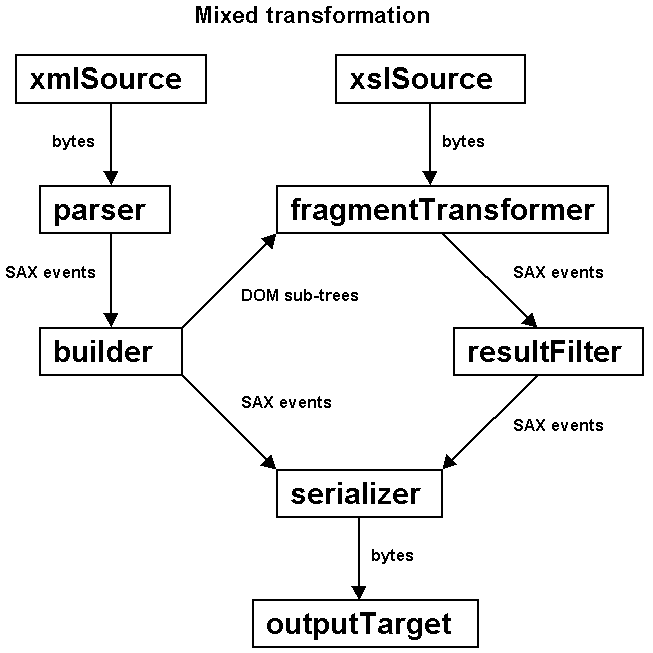

The transform() method creates three objects named builder, serializer and resultFilter. These objects are created internally and you don't have to use them in a typical case. You may, however, override the methods that create them in order to customize the transformation process.

After creating the three objects, transform() parses the given xmlSource and feeds the builder with the SAX input events.

The serializer will receive the SAX output events that represent the result produced by SDXTransformer. The default serializer is an identity TransformerHandler that simply saves the SAX events to the given outputTarget, which is an instance of the TrAX Result.

The role of the resultFilter object is to filter some of the SAX events that are generated during the transforming of the DOM sub-trees. For example, each transformation produces a startDocument() and an endDocument(). The multiple such pairs should be omitted from the result of the transformation. The SAX events that pass through the filter will reach the serializer object.

The default builder is a SDXBuilderT that receives the SAX events of the XML input source, uses the serializer as handler and this SDXTransformer as controller. The next paragraph explains the consequences.

The builder is initially in SAX parsing mode, which means that SAX events are forwarded to the serializer object. During the SAX parsing, the wantDOM() method of this object is called for each element start. When wantDOM() returns true, the builder constructs a DOM sub-tree, which is then passed for handling to the handleDOM() method of this object. During the DOM building, the wantDOM() method is NOT called. The builder switches to the SAX parsing mode automatically when the DOM sub-tree is completed. This process is repeated until the end of the parsed document. All SAX events that aren't used to build the sub-trees are passed to the serializer.

The handleDOM() method wraps each DOM sub-tree in a TrAX DOMSource, wraps the resultFilter in a TrAX SAXResult and passes these two TrAX objects to the transform() method of the fragmentTransformer object. This means that the XSLT transformation is applied to the DOM sub-trees and the resulted SAX events are filtered before reaching the serializer.

In conclusion, the SDXTransformer uses the framework's SDXBuilderT to do mixed SAX-DOM parsing. By default, all SAX events that aren't used to build DOM sub-trees will be part of the final result. The DOM sub-trees are transformed using a fragmentTransformer and the produced SAX events will also be inserted into the final result.

Typical usage:

    import com.devsphere.xml.saxdomix.SDXTransformer;
    import org.xml.sax.Attributes;
    import org.xml.sax.SAXException;
    import javax.xml.transform.Transformer;
    import javax.xml.transform.TransformerException;
    import javax.xml.transform.stream.StreamSource;
    import javax.xml.transform.stream.StreamResult;

    public class MyTransformer extends SDXTransformer {

        public MyTransformer(String xslSystemID)
                throws TransformerException {
            super(new StreamSource(xslSystemID));
        }

        public boolean wantDOM(String namespaceURI, String localName,
                String qualifiedName, Attributes attributes)
                throws SAXException {
            return ... // application specific
        }

        public static void main(String args[]) {
            Transformer transformer = new MyTransformer(args[0]);
            transformer.setOutputProperties(...);
            StreamSource source = new StreamSource(args[1]);
            StreamResult result = new StreamResult(args[2]);
            transformer.transform(source, result);
        }
    }

Warning: The developer must take into account that the XSLT stylesheet is used to transform DOM sub-trees / fragments. In some cases, applying the same stylesheet to the whole XML source document will produce a different result.

See Also:

SDXBuilderT, SDXController

Field Summary

protected org.xml.sax.ContentHandler	builder Builder used to do the mixed SAX-DOM parsing
protected javax.xml.transform.Transformer	fragmentTransformer Object used to transform the DOM sub-trees
protected org.xml.sax.ContentHandler	resultFilter Filter for the SAX events generated during the transforming of the DOM sub-trees
protected javax.xml.transform.sax.TransformerHandler	serializer Serializer that receives the resulted SAX output events
protected static javax.xml.transform.sax.SAXTransformerFactory	traxFactory Factory for Transformer and TransformerHandler objects

Constructor Summary

SDXTransformer(javax.xml.transform.Source xslSource)
Creates a transformer that will use the given xslSource to construct the fragmentTransformer.

SDXTransformer(javax.xml.transform.Transformer fragmentTransformer)
Creates a transformer that will use the given fragmentTransformer for processing the DOM sub-trees.

Method Summary

void	clearParameters() Calls the method with the same name of the fragmentTransformer object for clearing the parameter.
protected org.xml.sax.ContentHandler	createBuilder(javax.xml.transform.sax.TransformerHandler serializer) Creates the builder object.
protected org.xml.sax.ContentHandler	createResultFilter(javax.xml.transform.sax.TransformerHandler serializer) Creates the resultFilter object.
protected javax.xml.transform.sax.TransformerHandler	createSerializer(javax.xml.transform.Result outputTarget) Creates the serializer object.
javax.xml.transform.ErrorListener	getErrorListener() Calls the method with the same name of the fragmentTransformer object for getting the error listener.
java.util.Properties	getOutputProperties() Calls the method with the same name of the fragmentTransformer object for getting the output properties.
java.lang.String	getOutputProperty(java.lang.String name) Calls the method with the same name of the fragmentTransformer object for getting an output property.
java.lang.Object	getParameter(java.lang.String name) Calls the method with the same name of the fragmentTransformer object for getting the value of a parameter.
javax.xml.transform.URIResolver	getURIResolver() Calls the method with the same name of the fragmentTransformer object for getting the URI resolver.
void	handleDOM(org.w3c.dom.Element element) Receives the DOM sub-trees for transforming.
void	setErrorListener(javax.xml.transform.ErrorListener listener) Calls the method with the same name of the fragmentTransformer object for setting the error listener.
void	setOutputProperties(java.util.Properties oformat) Calls the method with the same name of the fragmentTransformer object for setting the output properties.
void	setOutputProperty(java.lang.String name, java.lang.String value) Calls the method with the same name of the fragmentTransformer object for setting an output property.
void	setParameter(java.lang.String name, java.lang.Object value) Calls the method with the same name of the fragmentTransformer object for setting the value of a parameter.
void	setURIResolver(javax.xml.transform.URIResolver resolver) Calls the method with the same name of the fragmentTransformer object for setting the URI resolver.
void	transform(javax.xml.transform.Source xmlSource, javax.xml.transform.Result outputTarget) Process the source tree to the output result.
abstract boolean	wantDOM(java.lang.String namespaceURI, java.lang.String localName, java.lang.String qualifiedName, org.xml.sax.Attributes attributes) The application must implement this method and returns true when a DOM sub-tree should be transformed by fragmentTransformer.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

traxFactory

protected static javax.xml.transform.sax.SAXTransformerFactory traxFactory

Factory for Transformer and TransformerHandler objects

fragmentTransformer

protected javax.xml.transform.Transformer fragmentTransformer

Object used to transform the DOM sub-trees

builder

protected org.xml.sax.ContentHandler builder

Builder used to do the mixed SAX-DOM parsing

serializer

protected javax.xml.transform.sax.TransformerHandler serializer

Serializer that receives the resulted SAX output events

resultFilter

protected org.xml.sax.ContentHandler resultFilter

Filter for the SAX events generated during the transforming of the DOM sub-trees

Constructor Detail

SDXTransformer

public SDXTransformer(javax.xml.transform.Transformer fragmentTransformer)

Creates a transformer that will use the given fragmentTransformer for processing the DOM sub-trees.

Parameters:

fragmentTransformer - The transformer for the DOM sub-trees

Throws:

java.lang.NullPointerException - If the parameter is null

SDXTransformer

public SDXTransformer(javax.xml.transform.Source xslSource)
               throws javax.xml.transform.TransformerException

Creates a transformer that will use the given xslSource to construct the fragmentTransformer.

Parameters:

xslSource - The stylesheet for the DOM sub-trees

Throws:

java.lang.NullPointerException - If the parameter is null

javax.xml.transform.TransformerException

Method Detail

wantDOM

public abstract boolean wantDOM(java.lang.String namespaceURI,
                                java.lang.String localName,
                                java.lang.String qualifiedName,
                                org.xml.sax.Attributes attributes)
                         throws org.xml.sax.SAXException

The application must implement this method and returns true when a DOM sub-tree should be transformed by fragmentTransformer.

During the SAX parsing, the builder object invokes the wantDOM() method for each startElement() parsing event. If wantDOM() returns false the SAX parsing mode continues. When wantDOM() returns true the builder enters in DOM parsing mode and starts creating a DOM sub-tree from all SAX events between the current startElement() and the corresponding endElement().

Specified by:

wantDOM in interface SDXController

Parameters:

namespaceURI - The element's namespace URI

localName - The element's local name

qualifiedName - The element's qualified name

attributes - The element's attributes

Returns:

A boolean value indicating whether the builder must enter in DOM parsing mode or must remain in SAX parsing mode

Throws:

org.xml.sax.SAXException - If an error must be signaled

handleDOM

public void handleDOM(org.w3c.dom.Element element)
               throws org.xml.sax.SAXException

Receives the DOM sub-trees for transforming.

After wantDOM() returns true, the builder constructs a DOM sub-tree from SAX events and passes it to the handleDOM() method.

The handleDOM() method wraps the given DOM sub-tree in a TrAX DOMSource, wraps the resultFilter in a TrAX SAXResult and passes these two TrAX objects to the transform() method of the fragmentTransformer object.

After the DOM sub-tree is transformed, the builder returns to the SAX parsing mode.

Specified by:

handleDOM in interface SDXController

Parameters:

element - The root of the DOM sub-tree

Throws:

org.xml.sax.SAXException - If an error must be signaled

createSerializer

protected javax.xml.transform.sax.TransformerHandler createSerializer(javax.xml.transform.Result outputTarget)
                                                               throws javax.xml.transform.TransformerException

Creates the serializer object. Its role is to receive the SAX output events that represent the result produced by this SDXTransformer.

The serializer created by the current implementation is an identity TransformerHandler that simply saves the SAX events to the given outputTarget.

Subclasses may override this method for replacing the default serializer.

Parameters:

outputTarget - The Result instance passed by the application to the transform() method

Returns:

The created serializer

Throws:

javax.xml.transform.TransformerException - If an error must be signaled

createResultFilter

protected org.xml.sax.ContentHandler createResultFilter(javax.xml.transform.sax.TransformerHandler serializer)
                                                 throws javax.xml.transform.TransformerException

Creates the resultFilter object. Its role is to filter some of the SAX events that are generated during the transforming of the DOM sub-trees. For example, each transformation produces a startDocument() and an endDocument(). The multiple such pairs should be omitted from the result of the transformation. The SAX events that pass through the filter should reach the serializer object.

The current implementation returns an instance of the com.devsphere.xml.saxdomix.helpers.ResultFilter class.

Subclasses may override this method for replacing the default resultFilter.

Parameters:

serializer - The current serializer object

Returns:

The created resultFilter

Throws:

javax.xml.transform.TransformerException - If an error must be signaled

createBuilder

protected org.xml.sax.ContentHandler createBuilder(javax.xml.transform.sax.TransformerHandler serializer)
                                            throws javax.xml.transform.TransformerException

Creates the builder object. Its role is to receive the SAX input events of the xmlSource that is passed to the transform() method. The builder is expected to act like a SDXBuilderT and forward the DOM sub-trees to the handleDOM() method of this SDXTransformer when wantDOM() returns true.

The current implementation returns a SDXBuilderT that uses the serializer object as handler and this SDXTransformer as controller.

Subclasses may override this method for replacing the default builder. Instead of using the serializer object, the application may provide its own handler for the SAX events that don't participate to the construction of the DOM sub-trees. In this case, the application's handler should still forward the startDocument() and endDocument() events to the serializer. The handler could act as a SAX filter retaining some of the SAX events and transforming the others before forwarding them to the serializer object.

Note that this should always be the SDXController of the builder.

Parameters:

serializer - The current serializer object

Returns:

The created builder

Throws:

javax.xml.transform.TransformerException - If an error must be signaled

transform

public void transform(javax.xml.transform.Source xmlSource,
                      javax.xml.transform.Result outputTarget)
               throws javax.xml.transform.TransformerException

Process the source tree to the output result.

The transform() method creates the three objects named builder, serializer and resultFilter. After this, transform() parses the given xmlSource and feeds the builder with the SAX input events.

Specified by:

transform in class javax.xml.transform.Transformer

Parameters:

xmlSource - The input source for the transformation

outputTarget - The output target for the transformation

Throws:

javax.xml.transform.TransformerException - If an error must be signaled

setParameter

public void setParameter(java.lang.String name,
                         java.lang.Object value)

Calls the method with the same name of the fragmentTransformer object for setting the value of a parameter.

Specified by:

setParameter in class javax.xml.transform.Transformer

Parameters:

name - The name of the parameter

value - The value for the parameter

getParameter

public java.lang.Object getParameter(java.lang.String name)

Calls the method with the same name of the fragmentTransformer object for getting the value of a parameter.

Specified by:

getParameter in class javax.xml.transform.Transformer

Parameters:

name - The name of the parameter

Returns:

The value of the parameter

clearParameters

public void clearParameters()

Calls the method with the same name of the fragmentTransformer object for clearing the parameter.

Specified by:

clearParameters in class javax.xml.transform.Transformer

setURIResolver

public void setURIResolver(javax.xml.transform.URIResolver resolver)

Calls the method with the same name of the fragmentTransformer object for setting the URI resolver.

Specified by:

setURIResolver in class javax.xml.transform.Transformer

Parameters:

resolver - An object whose class implements the TrAX URIResolver interface

getURIResolver

public javax.xml.transform.URIResolver getURIResolver()

Calls the method with the same name of the fragmentTransformer object for getting the URI resolver.

Specified by:

getURIResolver in class javax.xml.transform.Transformer

Returns:

An object whose class implements the TrAX URIResolver interface

setOutputProperties

public void setOutputProperties(java.util.Properties oformat)
                         throws java.lang.IllegalArgumentException

Calls the method with the same name of the fragmentTransformer object for setting the output properties.

Specified by:

setOutputProperties in class javax.xml.transform.Transformer

Parameters:

oformat - The new output properties

Throws:

java.lang.IllegalArgumentException - If the argument is invalid

getOutputProperties

public java.util.Properties getOutputProperties()

Calls the method with the same name of the fragmentTransformer object for getting the output properties.

Specified by:

getOutputProperties in class javax.xml.transform.Transformer

Returns:

The current output properties

setOutputProperty

public void setOutputProperty(java.lang.String name,
                              java.lang.String value)
                       throws java.lang.IllegalArgumentException

Calls the method with the same name of the fragmentTransformer object for setting an output property.

Specified by:

setOutputProperty in class javax.xml.transform.Transformer

Parameters:

name - The name of the property

value - The value for the property

Throws:

java.lang.IllegalArgumentException - If the arguments are invalid

getOutputProperty

public java.lang.String getOutputProperty(java.lang.String name)
                                   throws java.lang.IllegalArgumentException

Calls the method with the same name of the fragmentTransformer object for getting an output property.

Specified by:

getOutputProperty in class javax.xml.transform.Transformer

Parameters:

name - The name of the property

Returns:

The value of the property

Throws:

java.lang.IllegalArgumentException - If the argument is invalid

setErrorListener

public void setErrorListener(javax.xml.transform.ErrorListener listener)
                      throws java.lang.IllegalArgumentException

Calls the method with the same name of the fragmentTransformer object for setting the error listener.

Specified by:

setErrorListener in class javax.xml.transform.Transformer

Parameters:

listener - An object whose class implements the TrAX ErrorListener interface

java.lang.IllegalArgumentException

getErrorListener

public javax.xml.transform.ErrorListener getErrorListener()

Calls the method with the same name of the fragmentTransformer object for getting the error listener.

Specified by:

getErrorListener in class javax.xml.transform.Transformer

Returns:

An object whose class implements the TrAX ErrorListener interface
